¶ Mcube Plugin Addition
Provider's telephony plugin addition is needed to make any call through some provider on chakra. To add any provider telephony we need to follow the below steps:

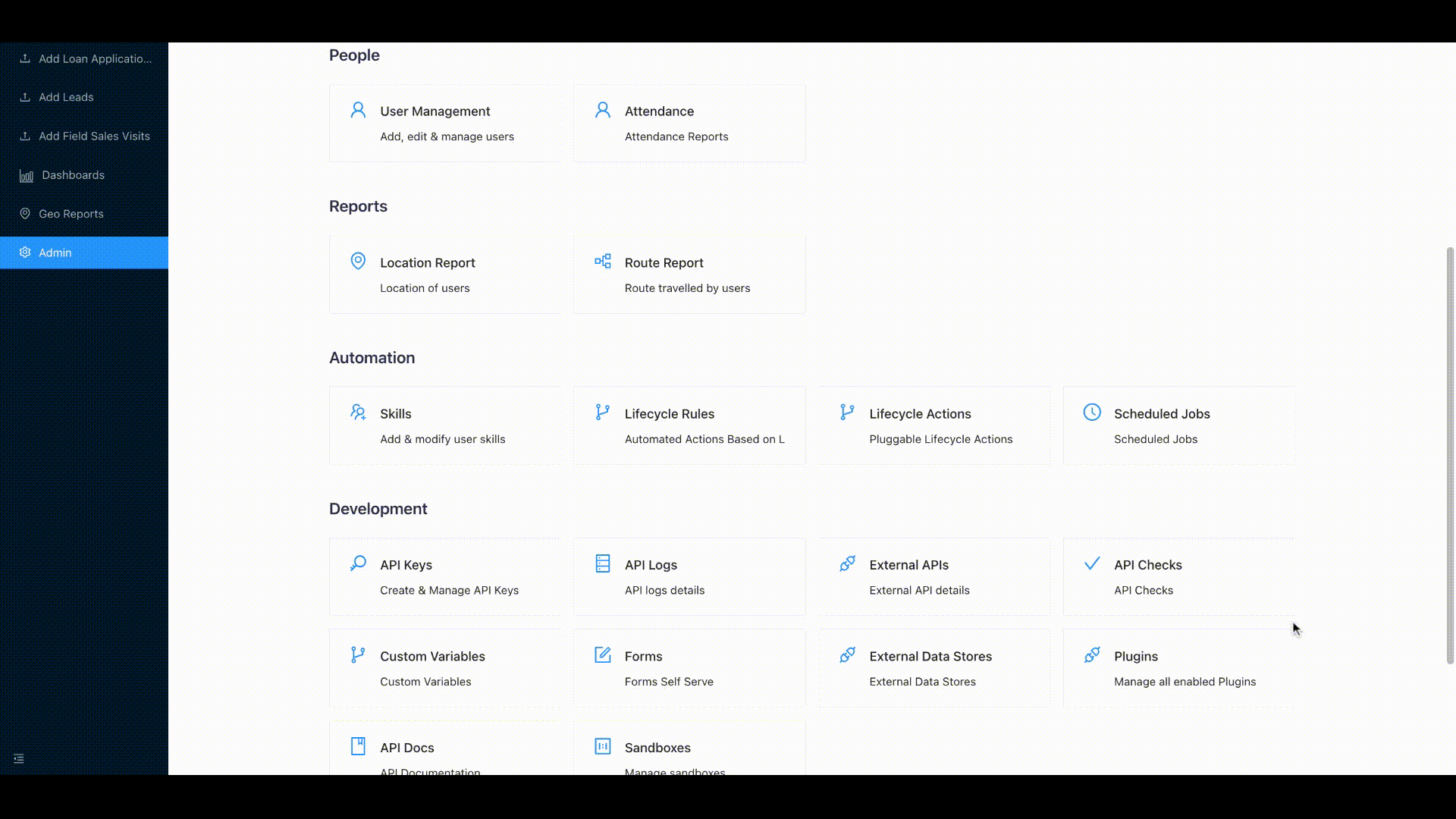

- Go to Admin --> Plugins
- Click on Add, name the plugin in label, select the type of plugin form the list and click add
- Enter the required API Key and click save

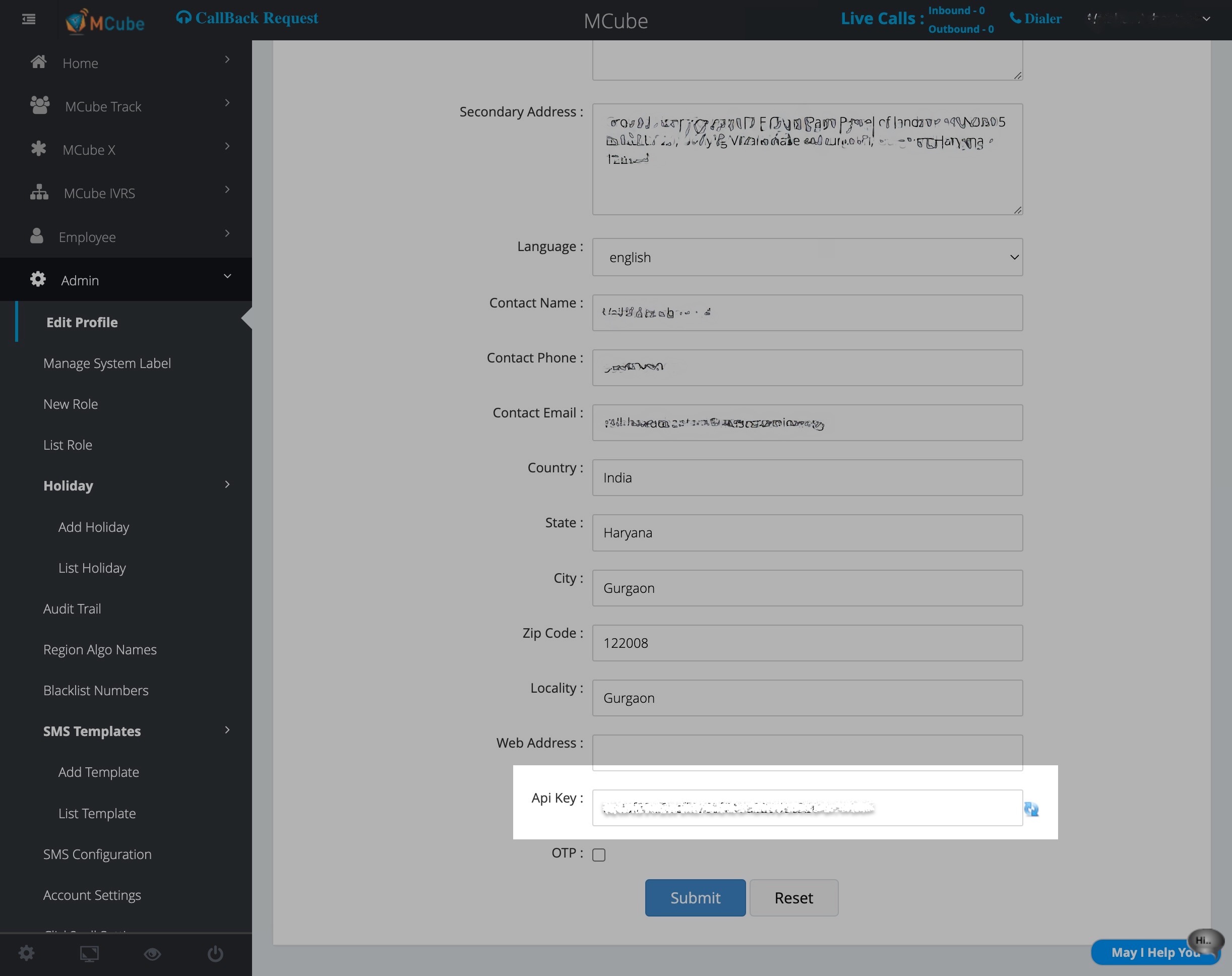

- You can get the API Key from the Mcube account. To get the access to the API Key , you need to drop an email to the mCube team to enable the access for your team
- Copy the
Call Start URLandCall Log URLpresent in the plugin .These two urls will be needed in mcbue website for the intergration
¶ Mcube configuration
To integrate Mcube with Chakra, we need to follow the below steps:
- Login to your Mcube account

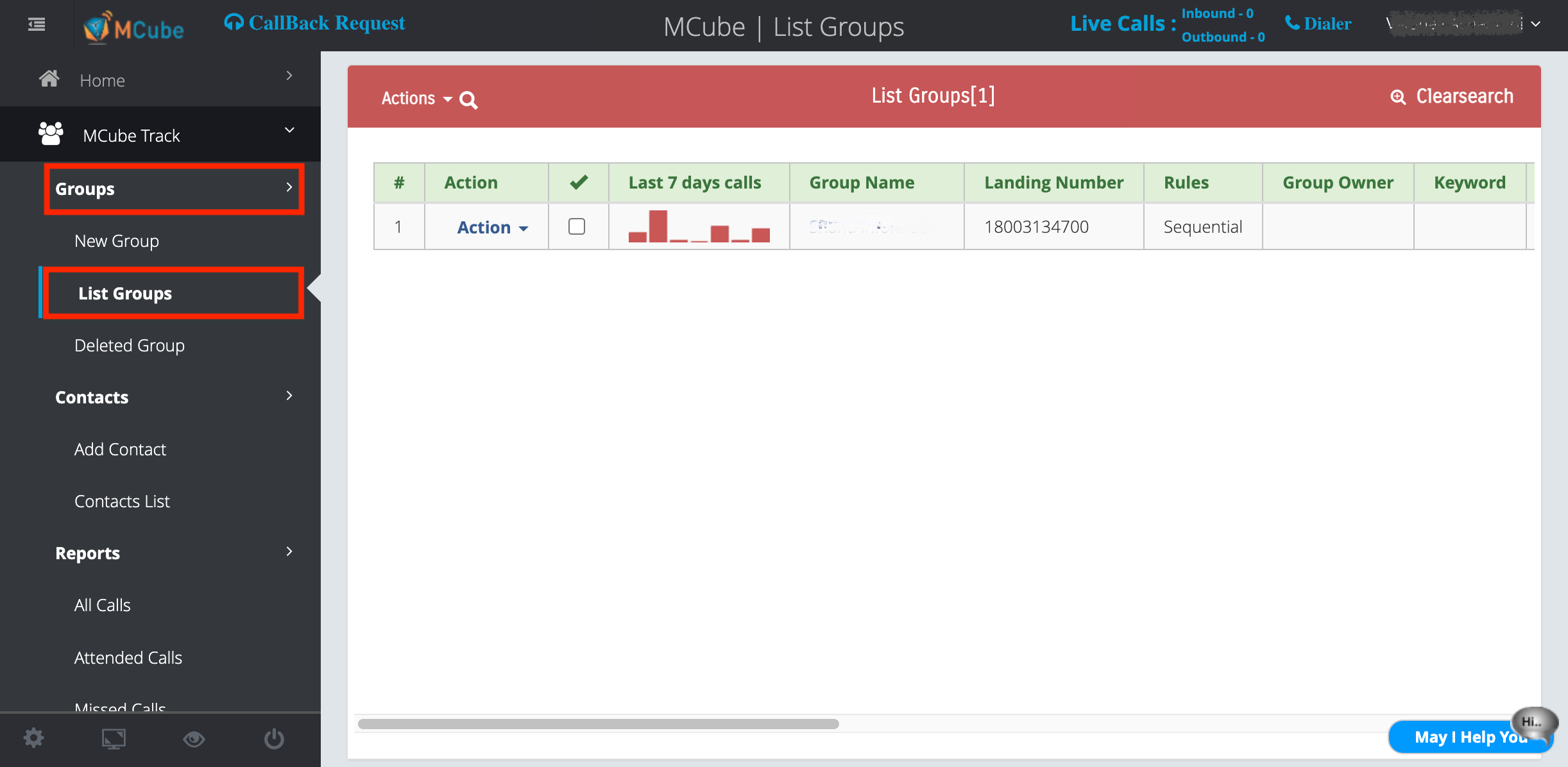

- Navigate to Mcube Track> Groups> List Groups

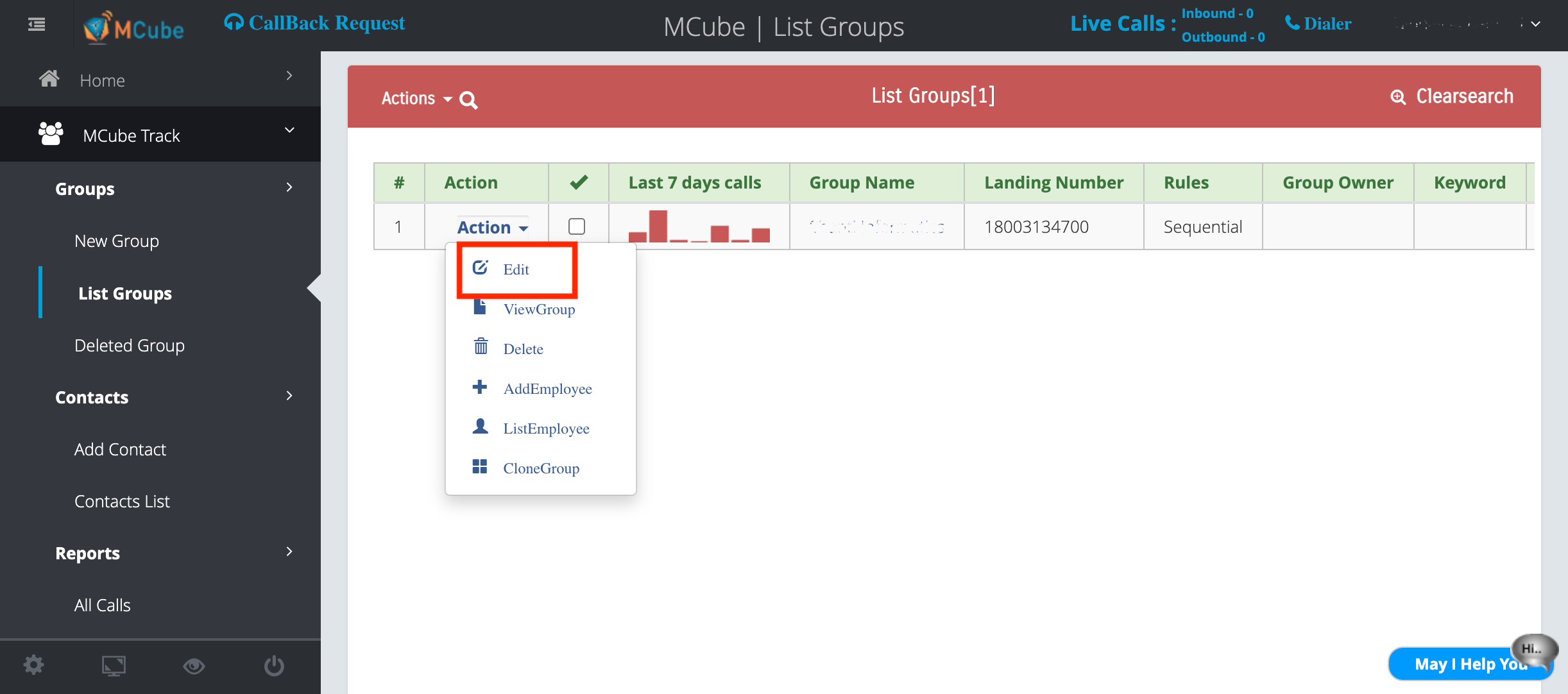

- Click on the edit option under action of the respective virtual DID.

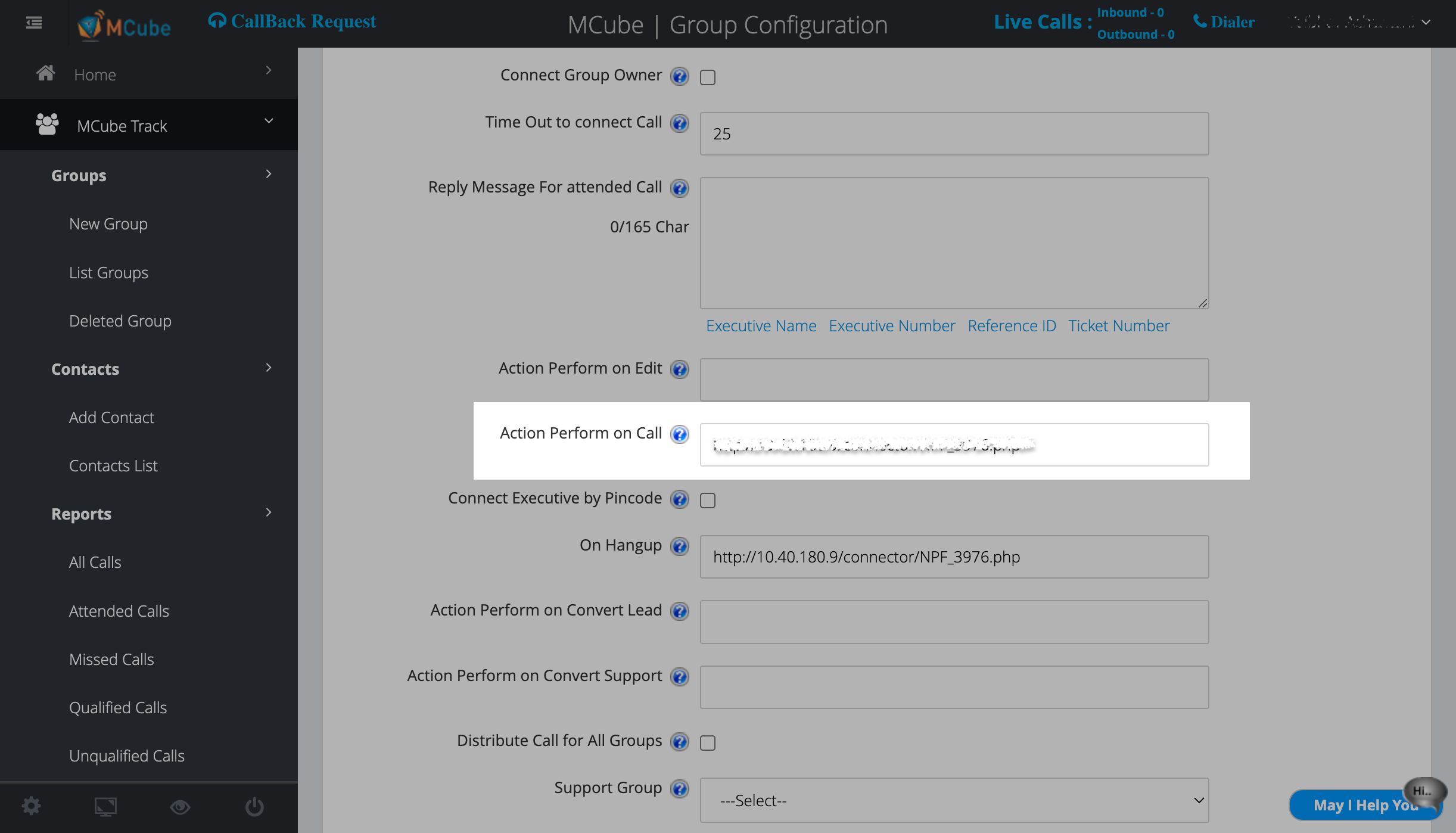

- Paste the
Call Start URLpresent in the Chakra's mcube plugin asAction Perform on Callfield

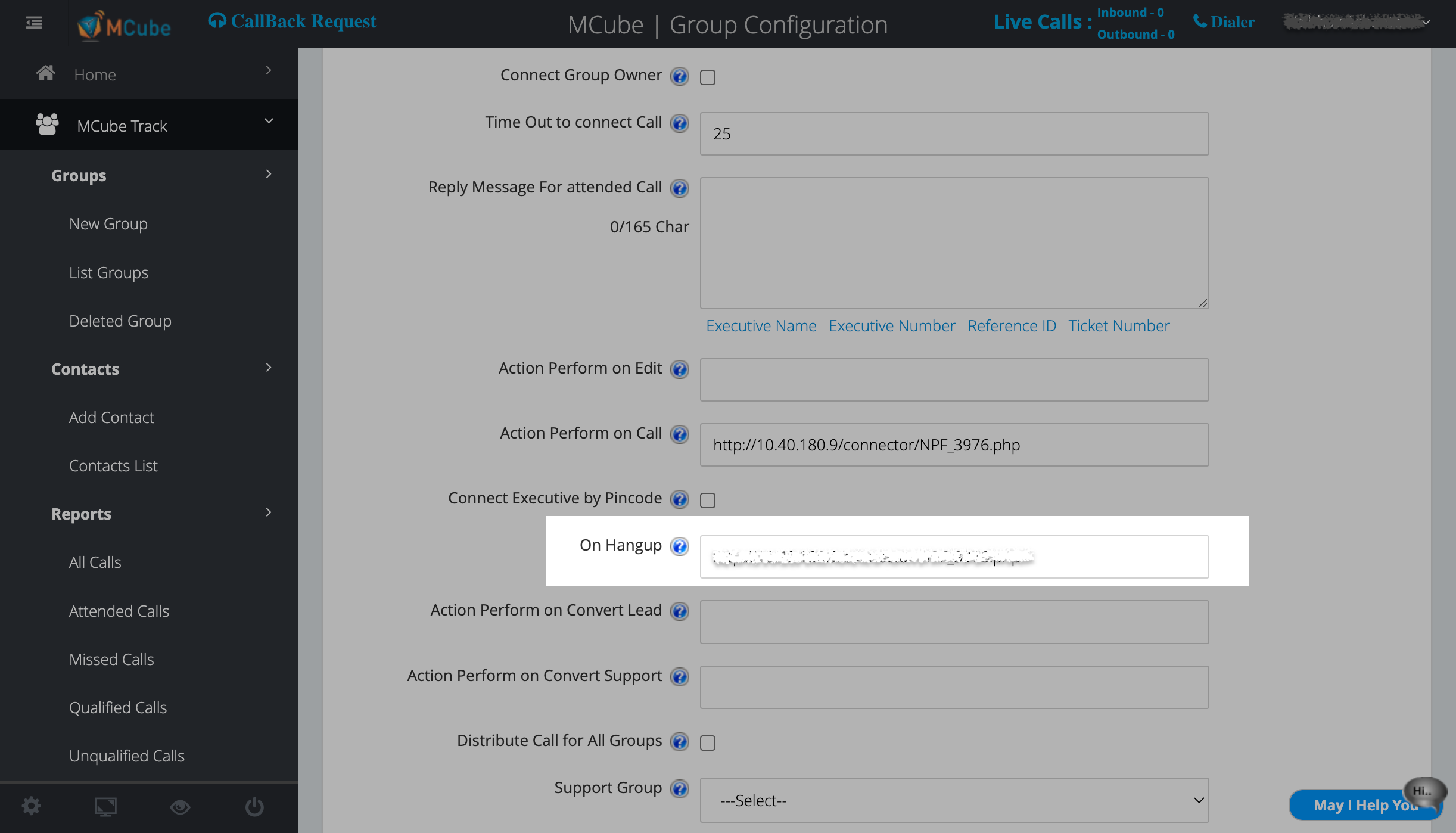

- Paste the
Call Log URLpresent in the Chakra's Mcube plugin asOn Hangupfield and save
.png)

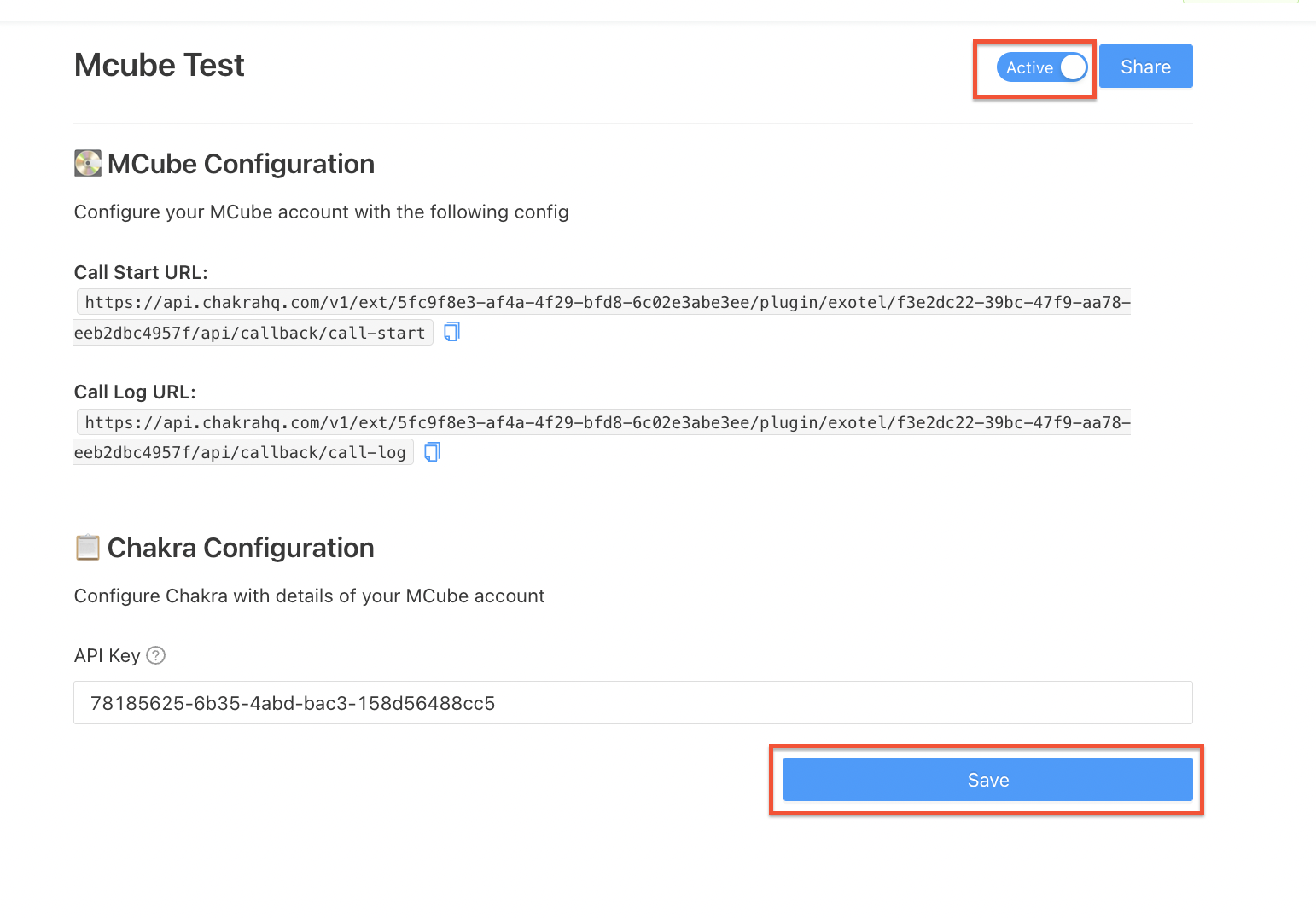

- Go to the Chakra's account mcube plugin and mark the plugin as
Activeand click on save
